MSP430 microcontroller family - series
source: http://www.ti.com.cn
-

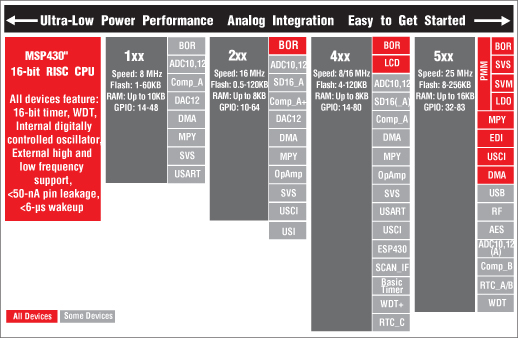

The MSP430 platform includes the five generation of ultra low power, highly integrated microprocessor products, more than 200 devices covering. Each generation of products to provide various levels of analog, digital peripherals and communications protocol, to help developers search for a variety of applications of the appropriate microprocessor.
MSP430x1xx series of
8MIPS ultra low power MCU, flash or based on ROM, the working voltage is 1.8V - 3.6V, with a flash and a variety of high performance analog and digital peripherals up to 60KB.
ultra low power low to:
0.1 A RAM mode 0.7 米 A real time clock mode 200 米 A/MIPS mode within 6 米 s fast wake up from standby m
The parameter
device:
flash options: 1KB 每 60KB ROM options: 1KB 每 16KB RAM options: 512B 每 10KB GPIO options: 14, 22, 48 pin ADC options: 10 and 12 slope SAR other integrated peripherals: analog comparator, DMA, hardware multiplier, SVS, 12 DAC[5]
MSP430F2xx series
ultra low power MCU based on flash memory, performance in the working voltage range of 1.8V - 3.6V as high as 16MIPS. Contains very low power oscillator (VLO), internal pullup / pulldown resistor and low pin count selection.
ultra low power low to:
Mode 0.3 米 A standby mode
0.1 A RAM (VLO) 0.7 米 A real time clock mode 220 米 A/MIPS mode within 1 米 s super fast wake up from standby
The parameter
device:
flash options: 1KB 每 120KB RAM options: 128B 每 8KB GPIO options: 10, 16, 24, 32, 48, 64 pin ADC options: 10 and 12 slope SAR, 16 bit sigma-delta ADC other integrated peripherals: analog comparator, hardware multiplier, DMA, SVS, 12 DAC, operation amplifier
MSP430C3xx series
the old ROM or OTP device series, the working voltage is 2.5V - 5.5V, up to 32KB ROM, 4MIPS and FLL.
ultra low power low to:
0.1 A RAM mode 0.9 米 A real time clock mode 160 米 A/MIPS mode within 6 米 s fast wake up from standby m
The parameter
device:
ROM options: 2KB 每 32KB RAM options: 512B 每 1KB GPIO options: 14, pin 40 ADC options: 14 slope SAR other integrated peripheral controller hardware multiplier: LCD, [7]
MSP430x4xx series
8-16MIPS LCD flash or ROM devices series, based on integrated, contains LCD controller, the working voltage is 1.8V-3.6V, with FLL and SVS. Ideal for low power consumption measurement and medical applications.
ultra low power low to:
0.1 A RAM mode 0.7 米 A real time clock mode 200 米 A/MIPS mode within 6 米 s fast wake up from standby m
The parameter
device:
/ROM memory options: 4kB 每 120KB RAM options: 256B 每 8KB GPIO options: 14, 32, 48, 56, 68, 72, 80 pin ADC options: 10 and 12 slope SAR, 16 bit sigma-delta ADC other integrated peripherals: LCD controller, analog comparator, 12, DMA, DAC the hardware multiplier, operational amplifier, USCI module
MSP430F5xx series
the new flash memory products based on, has the lowest power consumption performance in work, working voltage range of 1.8V-3.6V up to 25MIPS. Contains a creative power management module for power optimization.
ultra low power low to:
0.1 A RAM mode 2.5 米 A real time clock mode 165 米 A/MIPS mode within 5 米 s fast wake up from standby m
The parameter
device:
flash options: up to 256KB RAM options: up to 16KB ADC options: 10 and 12 other SAR integrated peripherals: USB, analog comparator, DMA, hardware multiplier, RTC, USCI, 12 DAC
